Pump

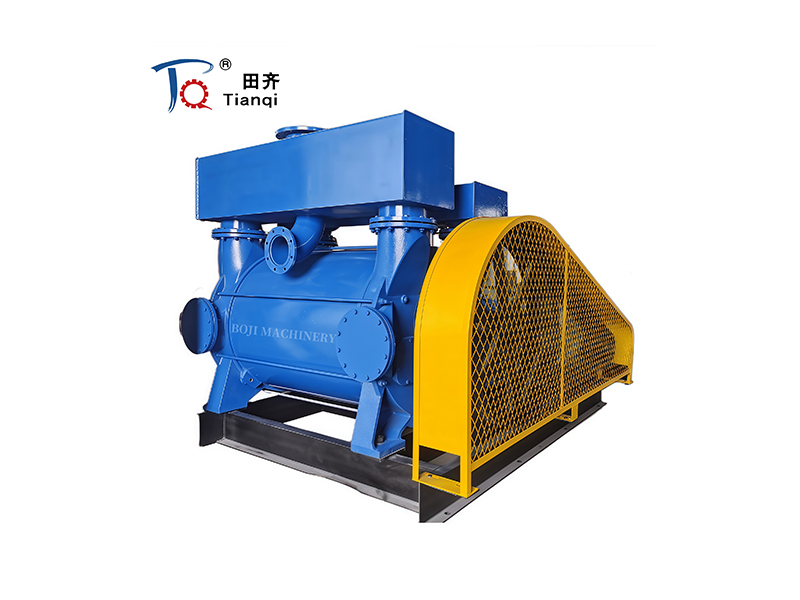

Water Ring Vacuum Pump

  • Type:Pump
  • Code:
  • 2BEC series water ring vacuum pump is used to pump air or other non-corrosive, insoluble in water, does not contain solid particles of gas. In order to form a vacuum or pressure in a closed container to meet process requirements.
  • Product Description

Product Introduction

2BEC series water ring vacuum pump is used to pump air or other non-corrosive, insoluble in water, does not contain solid particles of gas. In order to form a vacuum or pressure in a closed container to meet process requirements. A small amount of liquid is allowed in the suction gas. 2BEC series vacuum pumps are widely used in machinery, petroleum, chemical, pharmaceutical, food, sugar, metallurgy, paper making, coal washing, mineral processing, building materials, ceramics, printing and dyeing, light industry, thermal power generation and electronics industries.

Because the pump compresses the gas in an isothermal state during the working process, it can pump flammable and explosive gases, and by changing the structural material, it can also pump corrosive gases or corrosive liquids as working fluids.

Features:

1.High reliability

  • Adopting a kind of excessive match between shaft and impeller hole, so the pumps are with very high reliability. In welded impeller, machined hub and blade, so moving balance can be kept well, low noise.

2.Convenient maintenance

  • There are checking holes (Dismantle the pressing board) in the end cover of the pumps, so you can conveniently check the internal construction and clearance. and can rapidly and freely replace the valve board in
  • outlet. In addition, replace filling also can be done in condition that not dismantle the cover of the pumps. It is very convenient.

3.High efficiency,. energy-saving

  • The series water ring vacuum pump is adopting systematic designing. Distributing plate, impeller and other main details are designed reasonably and other main details are designed reasonably and efficiently.
  • Moreover, the water pumps all adopted flexible out-air valve design to avoid over compressing during air compressing. By auto adjust area of out-air to lower energy consumption to gain best operating efficiency.

4.Suit to forcing load

  • The impeller can be punched in a time to take a good shape. Welding impeller can be processed in one
  • unit on heat department 1to keep good toughness, anti-punching force and anti-welding force to suit to shocking load.
