Gear Motor

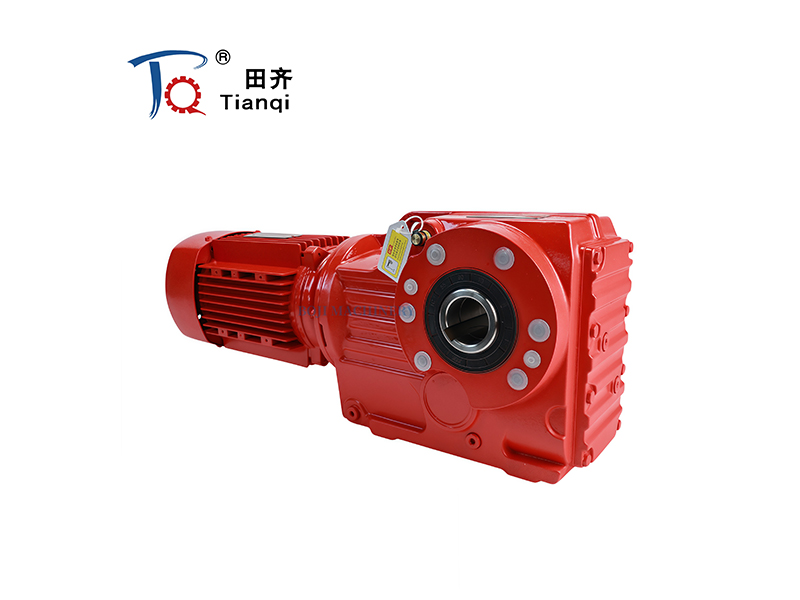

K Series Bevel Helical Gear Motor

  • Type:Gear Motor
  • Code:
  • K series bevel helical gear motor is a type of industrial gearbox that combines bevel gears (for right-angle power transmission) with helical gears (for smooth, high-efficiency torque transfer).

  • Product Description

Product Introduction

K series bevel helical gear motor is a type of industrial gearbox that combines bevel gears (for right-angle power transmission) with helical gears (for smooth, high-efficiency torque transfer). These gear motors are known for their durability, high torque capacity, and compact design, making them ideal for applications requiring 90° shaft orientation.

Features of K Series Gear Motors:

Bevel-Helical Gear Design

  • Bevel gears allow 90 degree shaft configuration (input and output shafts at a right angle gearbox). Helical gears provide smooth, quiet operation with high efficiency.

High Torque & Load Capacity

  • High Torque & Load Capacity Geared Motor

Compact & Rigid Construction

  • Space-saving design compared to worm gearboxes.

Space-saving design compared to worm gearboxes.

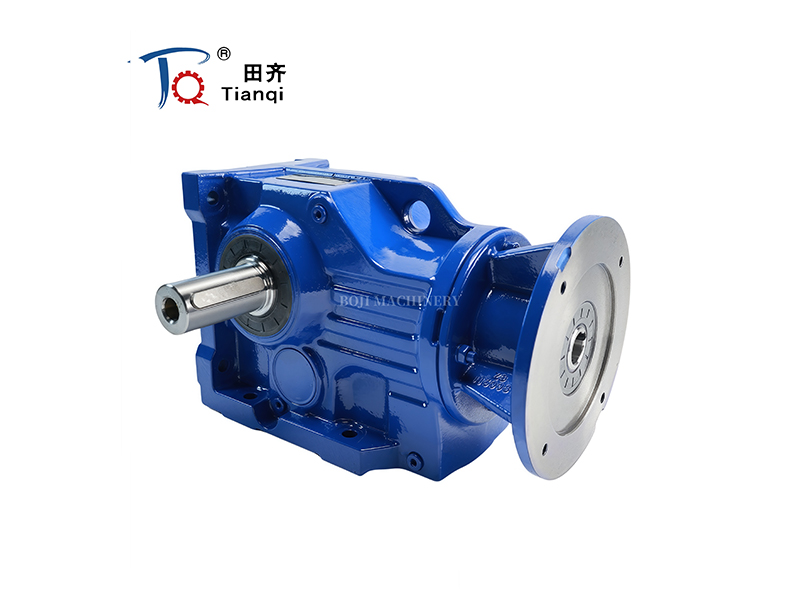

  • Foot-mounted, flange-mounted, or shaft-mounted versions available. Solid shaft and hollow shaft right angle gear motor type.

Wide Ratio Range

  • Offers various speed reduction options for different applications. From high speed to low speed.

High Efficiency (Up to 95%)

  • High Efficiency (Up to 95%)

Modular Design

  • Can be paired with different motor types (AC, DC, servo, etc.). 220V 380V 420V 440V 480V , 50/60 Hz gear motor can be designed.

Common Applications:

  • Material handling: In conveyor belts, cranes, lifts and other equipment, R series gear motors can provide stable power output to ensure efficient material handling and transmission.
  • Food processing: can be used in mixers, conveyor belts and other equipment, its compact structure and high efficiency to meet the food processing industry's requirements for hygiene and production efficiency.
  • Chemical industry: In mixing, mixing, conveying and other processes, the high torque and reliability of the R series gear motor can adapt to the complex conditions of the chemical industry. Paper industry: In a variety of machinery in paper production lines, such as paper machines, paper cutters, etc., R series gear motors provide stable and reliable drives to ensure the continuity of production.
  • Plastic processing: In plastic molding, extrusion and other equipment, R series gear motors can meet the requirements of precise control of speed and torque during plastic processing.
  • Pharmaceutical industry: In the mixing, conveying and other aspects of the pharmaceutical production line, the high precision and stability of the R series gear motor can ensure the quality and efficiency of pharmaceutical production.
  • Automotive manufacturing: In a variety of automation equipment on automotive production lines, such as welding robots, conveyor belts, etc., R series gear motors provide precise power control, improving production efficiency and product quality.
  • Textile industry: In textile machinery, such as spinning machines, looms, etc., R series gear motors can meet the high precision requirements of speed and torque in the textile industry to ensure the smooth progress of production.

Parameter Table

K Series Bevel Helical Gear Motor Specification
Model

K37

KA37

KAF37

K47

KA47

KAF47

K57

KA57

KAF57

K67

KA67

KAF67

K77

KA77

KAF77

K87

KA87

KAF87

K97

KA97

KAF97

K107

KA107

KAF107

K127

KA127

KAF127

K157

KA157

KAF157

K167

KA167

KAF167

K187

KA187

KAF187

Structure K KAKFKAFKAZ KAT KAB
Input power rating(kw)

0.18-3.0

0.18-3.0

0.18-5.5

0.18-5.5

0.37-11

0.75-22

1.1-30

3-45

7.5-90

11-160

11-200

18.5-200

Ratio

5.36-106.38

5.81-131.87

6.57-145.14

7.14-144.79

7.24-192.18

7.19-197.37

8.95-176.05

8.74-141.46

8.68-146.07

12.65-150.41

17.28-163.91

17.27-180.78

Permissible torque N.m

200

400

600

820

1550

2700

4300

8000

13000

18000

32000

50000
