Gear Motor

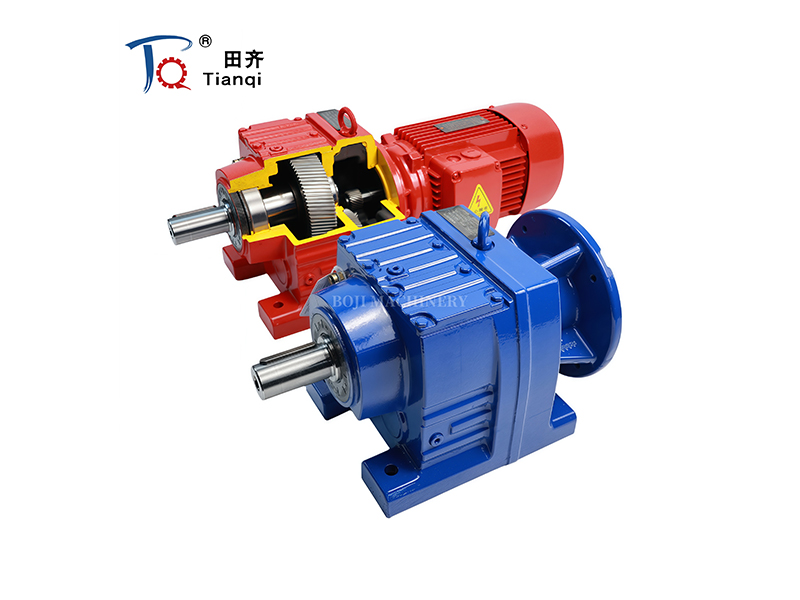

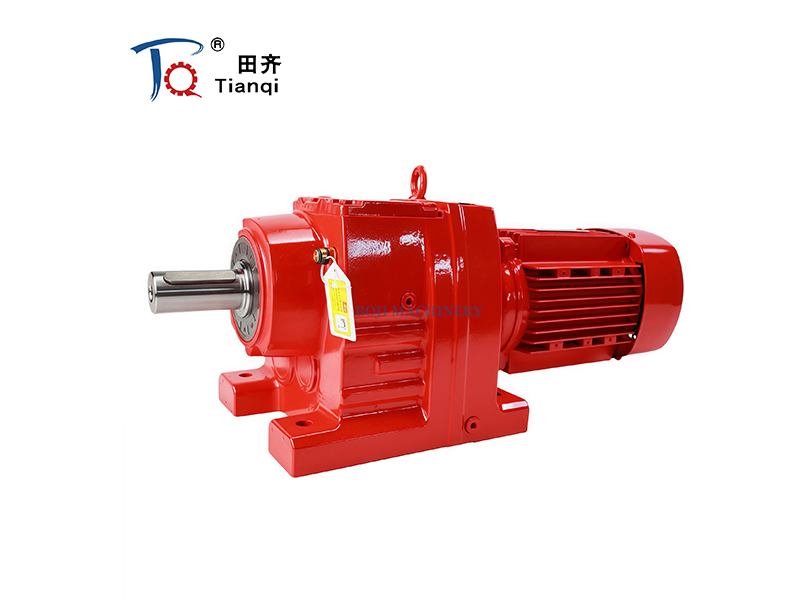

R Series Helical Gear Motor

  • Type:Gear Motor
  • Code:
  • R Series Helical Gear Motor is a common reducer motor, usually coaxial helical gear motor, with small size, light weight, high bearing capacity, high efficiency characteristics, widely used in the industrial field.
  • Product Description

Product Introduction

R Series Helical Gear Motor is a common reducer motor, usually coaxial helical gear motor, with small size, light weight, high bearing capacity, high efficiency characteristics, widely used in the industrial field.

Product characteristics

Features of R Series Gear Motors:

  • Compact structure and high efficiency: Combine electric motor and gearbox,The modular design is compact and enables an optimal balance of high torque output and installation space, with an efficiency typically between 92-97%.
  • High precision and long life: Gear forged with high-quality alloy steel, carbonitriding and hardening treatment and grinding process to ensure high precision and stable operation, thereby extending service life.
  • High torque and a variety of installation methods: provide a variety of installation methods, such as Foot-mounted, flange-mounted, or shaft-mounted configurations, the output torque range from tens of N/m to tens of thousands of N/m , can meet the needs of different application scenarios.
  • Wide applicability: can be combined with a variety of types of motors(AC, DC, servo, etc.), such as single-phase AC motor, three-phase AC motor, brake motor, variable frequency motor, etc., can also be combined with other types of reducer boxes, such as K series, F series, S series, etc., to meet the needs of more complex applications.

Application industry

Common Applications:

  • Material handling: In conveyor belts, cranes, lifts and other equipment, R series gear motors can provide stable power output to ensure efficient material handling and transmission.
  • Food processing: can be used in mixers, conveyor belts and other equipment, its compact structure and high efficiency to meet the food processing industry's requirements for hygiene and production efficiency.
  • Chemical industry: In mixing, mixing, conveying and other processes, the high torque and reliability of the R series gear motor can adapt to the complex conditions of the chemical industry. Paper industry: In a variety of machinery in paper production lines, such as paper machines, paper cutters, etc., R series gear motors provide stable and reliable drives to ensure the continuity of production.
  • Plastic processing: In plastic molding, extrusion and other equipment, R series gear motors can meet the requirements of precise control of speed and torque during plastic processing.
  • Pharmaceutical industry: In the mixing, conveying and other aspects of the pharmaceutical production line, the high precision and stability of the R series gear motor can ensure the quality and efficiency of pharmaceutical production.
  • Automotive manufacturing : In a variety of automation equipment on automotive production lines, such as welding robots, conveyor belts, etc., R series gear motors provide precise power control, improving production efficiency and product quality.
  • Textile industry: In textile machinery, such as spinning machines, looms, etc., R series gear motors can meet the high precision requirements of speed and torque in the textile industry to ensure the smooth progress of production.

Parameter Table

R Series Helical Gear Motor Specification
Model

R17

R27

R37

R47

R57

R67

R77

R87

R97

R107

R137

R147

R167

Structure R RF
Input power rating(kw)

0.18-0.75kw

0.18-3.0kw

0.18-3.0kw

0.18-5.5kw

0.18-7.5kw

0.18-7.5kw

0.18-11kw

0.55-22kw

0.55-30kw

2.2-45kw

5.5-55kw

11-90kw

11-160kw

Ratio

3.83-74.84

3.37-135.09

3.33-134.82

3.83-176.88

4.39-186.89

4.29-199.81

5.21-195.24

5.36-246.54

4.49-289.74

5.06-249.16

5.15-222.60

5.00-163.31

10.24-229.71

Permissible torque N.m

85

130

200

300

450

600

820

1550

3000

4300

8000

1300

18000

Model

RX37

RX57

RX67

RX77

RX87

RX97

RX107

RX127

RX157

Structure RX RXF
Input power rating(kw)

0.18-1.1kw

0.18-5.5kw

0.18-7.5kw

1.1-11kw

3-22kw

5.5-30kw

7.5-90kw

11-132kw

Ratio

1.62-4.43

1.3-5.5

1.4-6.07

1.42-8.00

1.39-8.65

1.42-8.23

1.44-6.63

5.36-246.54

4.49-289.74

Permissible torque N.m

85

130

200

300

450

600

820

1550

3000
