Gear Motor

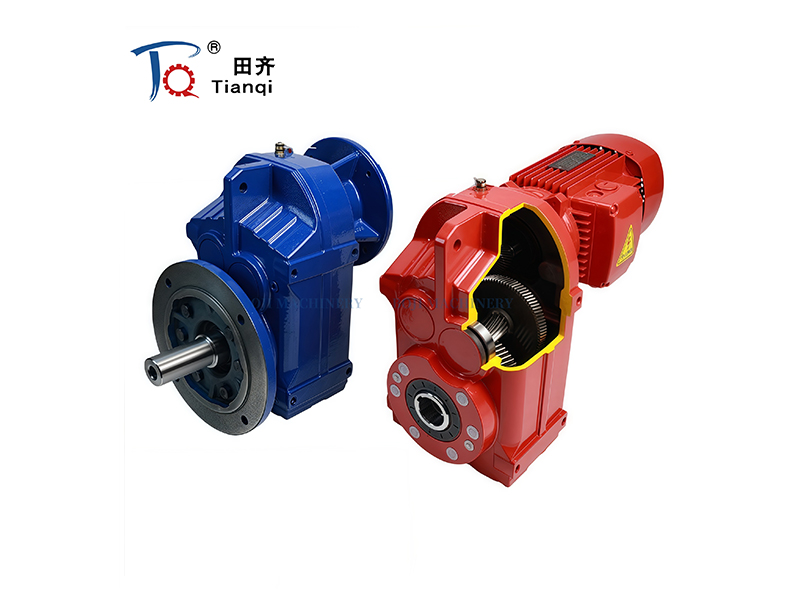

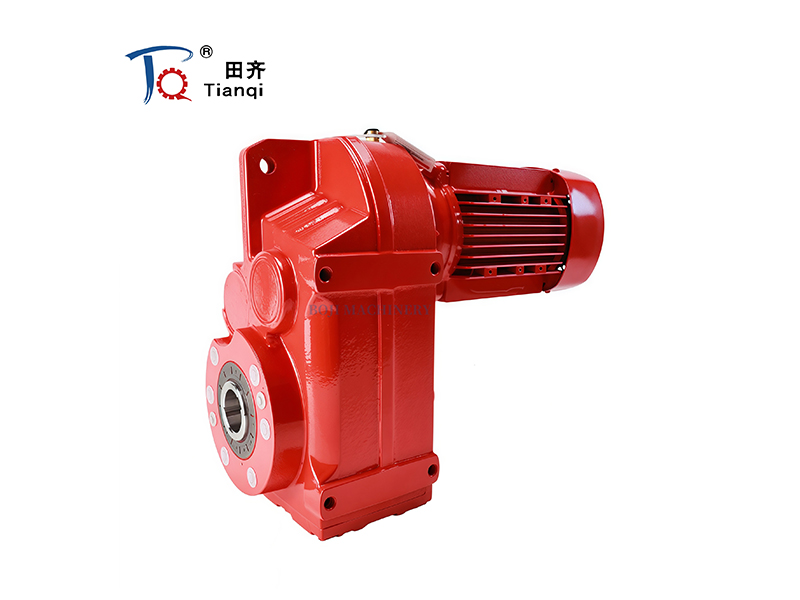

F Series Parallel Shaft Gear Motor

  • Type:Gear Motor
  • Code:
  • F series parallel shaft helical gear motor is an efficient and stable transmission equipment, which is widely used in industrial fields.

  • Product Description

Product Introduction

F series parallel shaft helical gear motor is an efficient and stable transmission equipment, which is widely used in industrial fields. It is driven by a bevel gear, which converts the high speed and low torque of the input shaft to the low speed and high torque of the output shaft, while changing the direction of motion. Known for its high efficiency, high torque output, low noise and compact design, this gear motor is suitable for a variety of industrial applications.

Product characteristics

Parallel Shaft Design

  • Input and output shafts are aligned in parallel, allowing for straight-line power transmission.
  • More efficient than right-angle gearboxes (like K Series).

Helical Gearing

  • Provides smooth, low-noise operation compared to spur gears.

Higher load capacity and durability due to gradual tooth engagement.

High Efficiency (Up to 98%)

  • Lower energy loss compared to worm or bevel gearboxes.

Modular & Compact Design

  • Can be combined with various motors (AC motor, DC motor, servo motor, etc.).
  • Space-saving, suitable for constrained installations.

Multiple Mounting Configurations

  • Foot-mounted (F)
  • Flange-mounted (FF)
  • Shaft-mounted (FA, FAF)

Wide Gear Ratio Range

  • Typically from 1.5:1 to 200:1, allowing precise speed control. 5 rpm, 10 rpm, 20 rpm, 30 rpm, 50 rpm, 60 rpm, 90 rpm, 100 rpm, 120 rpm are typical output speed for the gear motor.

High Torque Capacity

  • Suitable for heavy-duty industrial applications.

Application industry

Common Applications:

  • Conveying equipment: such as conveyor belt, chain conveyor, etc.
  • Machine tool industry: Used for spindle, feed movement, etc.
  • Packaging machinery: rapid quantitative packaging.
  • Printing machinery: improve work efficiency and printing quality.
  • Medical equipment: Ensure smooth, light and accurate operation of the equipment.
  • Metallurgical mines: used for cranes, presses, etc.
  • Chemical industry: suitable for mixers, pumps and other equipment.

Parameter Table

F Series Parallel Shaft Helical Gear Motor Specification
Model

F37

FA37

FAF37

F47

FA47

FAF47

F57

F57

AF57

F67

FA67

FAF67

F77

FA77

FAF77

F87

FA87

FAF87

F97

FA97

FAF97

F107

FA107

FAF107

F127

FA127

FAF127

F157

FA157

FAF157

Structure FFAFFFAFFAZ
Input power rating(kw)

0.18-3.0

0.18-3.0

0.18-5.5

0.18-5.5

0.37-11

0.75-22

1.1-30

2.2-45

7.5-90

11-200

Ratio

3.81-128.51

5.06-189.39

5.18-199.70

4.21-228.9

4.30-281.71

4.12-270.68

4.68-280.76

7.5-900

4.63-172.1

11.92-267.4

Permissible torque N.m

200

400

600

820

1500

3000

4300

7840

12000

18000
