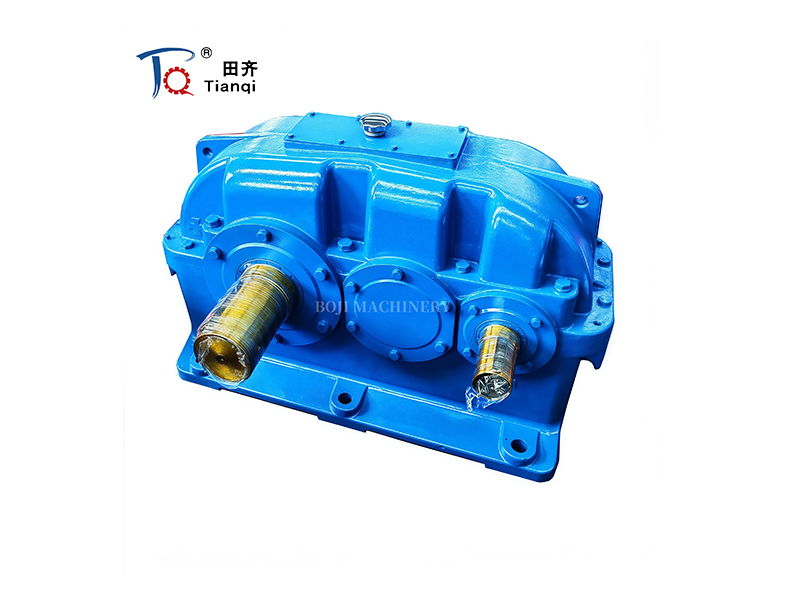

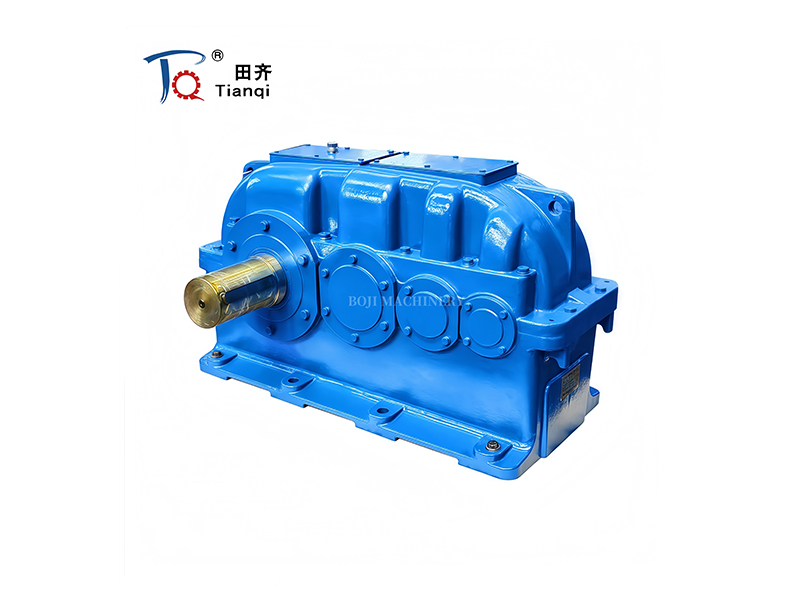

Helical / Bevel Gearbox

ZDY ZSY ZLY ZFY Series Gearbox

  • Type:Helical / Bevel Gearbox
  • Code:
  • Hard face cylindrical gear reducer mainly includes ZDY(single stage), ZLY(two stage), ZSY(three stage), ZFY(four stage) series, used in metallurgy, mining, transportation, cement, construction, foundry, textile, light industry, energy and other industries of mechanical transmission.
  • Product Description

Product Introduction

Hard face helical gear reducer gearbox mainly includes ZDY(single stage), ZLY(two stage), ZSY(three stage), ZFY(four stage) series, used in metallurgy, mining, transportation, cement, construction, foundry, textile, light industry, energy and other industries of mechanical transmission.

Helical Gear Type Reducer, with parallel shaft, includes a range of hard-toothed surface cylindrical helical gear reducers. Compact design, light weight, high precision, large load-bearing capacity, high efficiency, long service life for industrial.

Features:

  • Applicable to the metallurgical,power generation,water treatment,construction,chemical,paper,textiles,medicine,food and other industries.
  • (1) The transmission efficiency of single-stage can reach up to 98%, two-stage can reach 96%, three-stage can reach 94%.
  • (2) The gears are made of high-quality alloy steel through carburizing& Grinding with high precision, and the tooth surface hardness reaches HRC54-62.
  • (3)The main parameters such as center distance and nominal transmission ratio have all been optimized and designed, and the main zeros and parts are interchangeable.
  • (4) Small size, light weight, high precision, large carrying capacity, high efficiency, long life, high reliability, smooth transmission, low noise.

Parameter Table

TYPE MODEL RATIO POWER TORQUE
ZDY

ZDY80, ZDY100, ZDY125, ZDY160, ZDY200, ZDY250,

1.25 1.4 1.6 1.8 2 2.24 2.5

5-6666KW

0-150885 N.m

ZDY280, ZDY315, ZDY355, ZDY400, ZDY450, ZDY500, ZDY560

2.8 3.15 3.55 4 4.5 5 5.6 6.3

ZLY

ZLY112, ZLY125, ZLY140, ZLY160, ZLY180, ZLY200, ZLY224, ZLY250,

6.3 7.1 8 9 10

7.5-6229KW

0-426541 N.m

ZLY280, ZLY315, ZLY355, ZLY400, ZLY450, ZLY500, ZLY560, ZLY630, ZLY710

11.2 12.5 14 16 18 20

ZSY

ZSY160, ZSY180, ZSY200, ZSY224, ZSY250, ZSY280, ZSY315,

22.4 25 28 31.5 35.5 40

4-1905KW

0-519520 N.m

ZSY355, ZSY400, ZSY450, ZSY500, ZSY560, ZSY630, ZSY710

45 50 56 63 71 80 90 100

ZDY

ZFY180, ZFY200, ZFY225, ZFY250, ZFY280, ZFY320,

100 112 125 140 160 180 200

1.1-1100KW

0-520000 N.m

ZFY360, ZFY400, ZFY450, ZFY500, ZFY560, ZFY630, ZFY710

224 250 280 315 355 400 450 500
