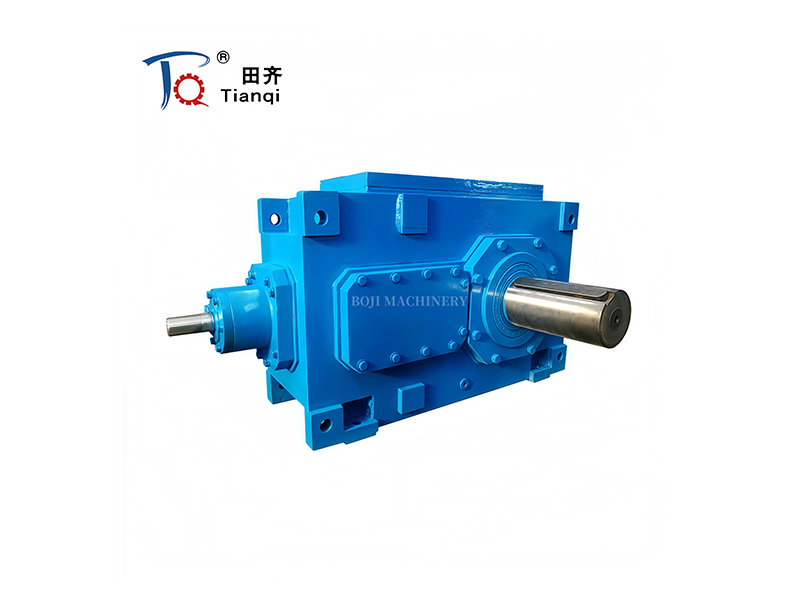

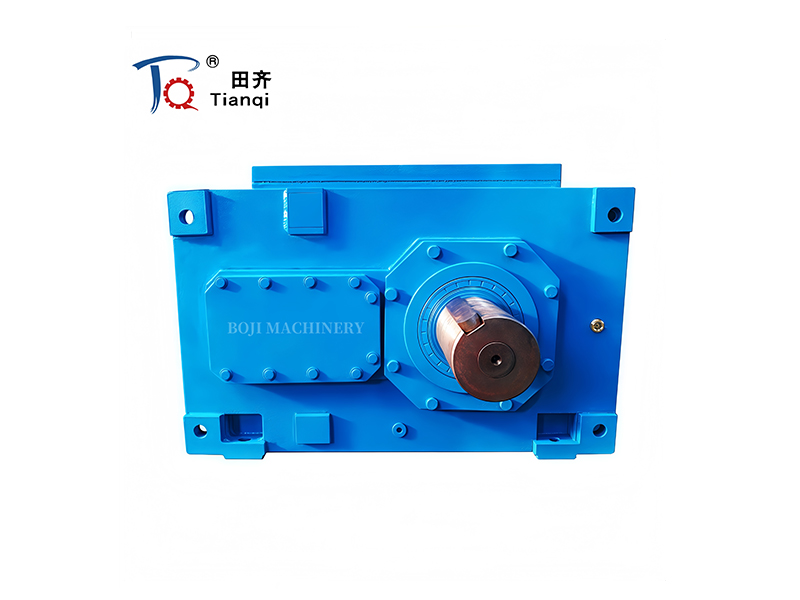

Helical / Bevel Gearbox

HB Series Helical Gearbox

  • Type:Helical / Bevel Gearbox
  • Code:
  • The HB series gearbox is a heavy-duty industrial gear reducer commonly used in applications requiring high torque, durability, and reliability, such as mining, cement, steel, and material handling industries.
  • Product Description

Product Introduction

The HB series helical bevel gearbox is a heavy-duty industrial gear reducer commonly used in applications requiring high torque, durability, and reliability, such as mining, cement, steel, and material handling industries. It typically features a helical or bevel-helical gear design for efficient power transmission and smooth operation.

H series gearbox, helical gear structure, with parallel shaft, solid and hollow output shaft type.

B series gearbox, using bevel gear and helical gear, realized 90 degree right angle shaft input output shaft type.

Features:

  • Realized parallel shaft,right-angle shaft modes and horizontal,vertical mounting modes. Using less component parts.
  • Applying advanced grinding process which improved the stability and the efficiency of transmit power with lower noise.
  • Input mode: motor connected flange, shaft input.
  • Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft with shrink disk, hollow or solid shaft with involute splines, solid shaft with flange.
  • Mounting mode:foot-mounted,flange-mounted,swing base-mounted,torque-arm-mounted.
  • Ratio range:1.23~450. It will be higher when combining with K&R series reducer.
Type Helival / Bevel gear units
Model

H1SH H1HH H1SV H1DH H1DV

H2SH H2DH H2HH H2SV H2DV B2SH B2DH B2HH B2SV B2DV

H3SH H3DH H3HH H3SV H3DV B3SH B3DH B3HH B3SV B3DV

H4SH H4DH H4HH H4SV H4DV B4SH B4DH B4HH B4SV B4DV

Size

4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

Stage

1stage 2stage 3 stage 4stage

Gear Type

Helical / Bevel gear

Input mode

coaxial input, helical gear input, bevel helical gear input

Output mode

S solid shaft with parallel key

H hollow shaft with parallel key

D hollow shaft with shrink disk

Mounting mode

H Foot Mounted

M Horizontal without feet

V Vertical Mounted

Power

10-4976KW

Ratio

1.2 1.4 1.6 1.8 2.0 2.24 2.5 2.8 3.15 3.55 4.0 4.5 5.0 5.6 6.3 7.1 8.0 9 10 11.2 12.5 14 16 18 20 22.4 25 28 31.5 35.540 45 50 56 63 71 80 90 100 112 125 140 160 180 200 224 250 280 315 355 400 450
