Planetary Gearbox

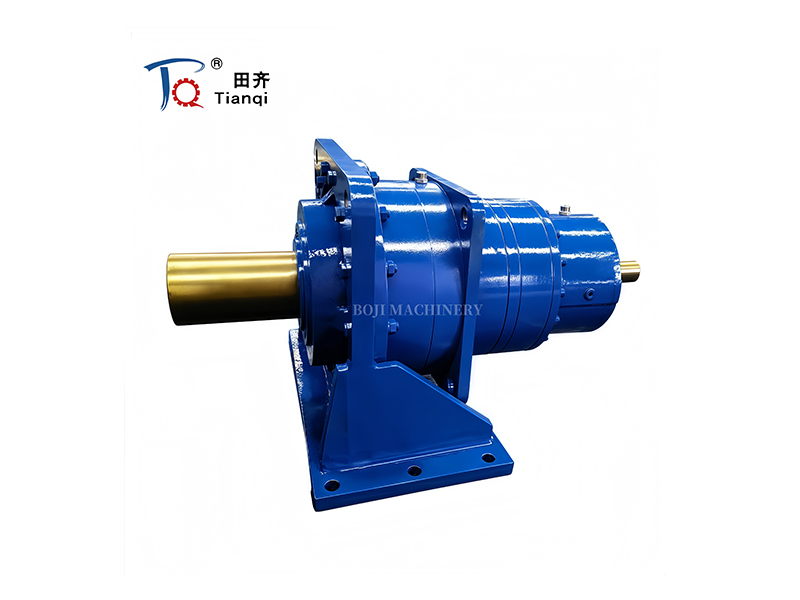

P Series Planetary Gearbox

  • Type:Planetary Gearbox
  • Code:
  • The P series planetary gear reducers, are high-precision transmission devices that are widely utilized in various industrial applications. Recognized for their compact design, high efficiency, and ability to handle significant torque, making them suitable for heavy-duty working conditions.
  • Product Description

Product Introduction

The P series planetary gear reducers, are high-precision transmission devices that are widely utilized in various industrial applications. Recognized for their compact design, high efficiency, and ability to handle significant torque, making them suitable for heavy-duty working conditions.

Features:

  • High Torque Density – Designed to deliver high torque in a compact form factor.
  • Modular Design – Often allows for easy integration with servomotors, stepper motors, or other drive systems.
  • Multiple Reduction Ratios – Available in a range of ratios (3:1 to 100:1 or higher) to suit different applications.
  • High Precision – Low backlash options for applications requiring accurate positioning ( robotics, CNC machines).
  • High Efficiency – Typically 95% or higher per stage, depending on the design.
  • Durable Construction – Made from hardened steel or alloy gears with high-quality bearings for long service life.
  • Mounting Options – Flange-mounted, inline, or right-angle configurations depending on the model.

Common Applications:

  • Industrial Automation (robotics, conveyors, packaging machines)
  • Renewable Energy (wind turbine pitch drives)
  • Material Handling (cranes, lifts, winches)
  • Medical & Aerospace (where precision and reliability are critical)

Main specification:

Type Planetary gear units GEARBOX
Model

P2NA P2NB P2SA P2SB P2LA P2LB P2KA P2KB

P3NA P3NB P3SA P3SB P3LA P3LB P3KA P3KB

Size

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

Stage

2stage 3 stage

Gear Type

Planetary gear

Input mode

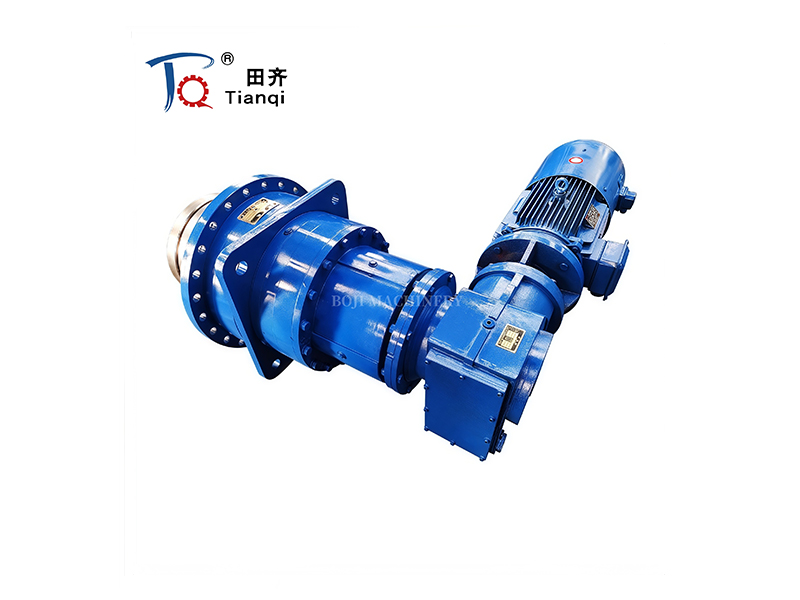

coaxial input, helical gear input, bevel helical gear input

Output mode

A hollow shaft with shrink disk

B solid shaft with parallel key

C hollow shaft with involute splines

D solid shaft with involute splines

Mounting mode

horizontal, vertical, torque arm

Power

0.4-7960KW

Ratio

25-4000

25 28 31.5 35.5 40 45 50 56 63 71 80 90 100 112 125 140 160 180

200 225 250 280 315 355 400 450 500 560 630 710 800 900 1000

1120 1250 1400 1600 1800 2000 2240 2500 2800 3150 3550 4000
