Worm Gear Box & Motor

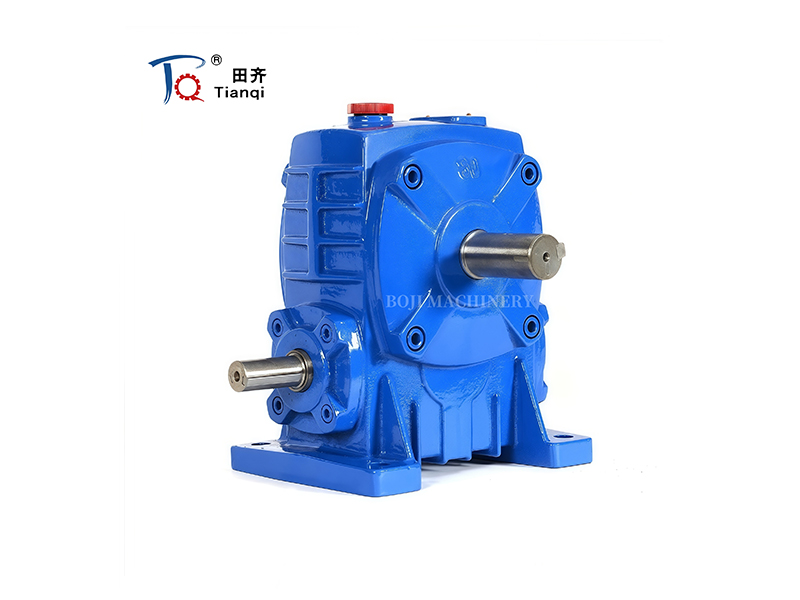

WP Series Worm Gearbox

  • Type:Worm Gear Box & Motor
  • Code:
  • WP reducer, divided into standard WPS series, standard WPD series, standard WPA, WPO, WPDA, WPDO, WPDS, WPDS and so on.

  • Product Description

Product Introduction

WP reducer, divided into standard WPS series, standard WPD series, standard WPA, WPO, WPDA, WPDO, WPDS, WPDS and so on. WP worm gear reducer is developed on the basis of WD reducer, the worm is made of 45# high quality steel by heat treatment, and the worm gear is cast with tin bronze, which has good wear resistance, especially in the bearing capacity. Worm gear reducer is mainly used in plastics, metallurgy, beverage, mining, lifting transportation, chemical construction and other mechanical equipment deceleration drive.

Features:

1, smooth transmission, vibration, impact and noise are small, large deceleration ratio, wide versatility, can be used with a variety of mechanical equipment.

2, can be a single stage transmission to obtain a larger transmission ratio, compact structure, most types of reducer has a good self-locking, the mechanical equipment with braking requirements can save the braking device

3, worm screw and worm gear tooth surface meshing friction loss is larger, so the transmission efficiency is lower than the gear, easy to heat and high temperature.

4, the lubrication and cooling requirements are higher.

5, good compatibility, worm gear and worm are manufactured according to national standards, bearings, oil seals and other standard parts.

6, the box type has a basic type (the box is a vertical or horizontal structure with a foot board) and a universal type (the box is a cuboid, with fixed screw holes on multiple sides, without a foot board or another foot board and other structural types)

7, the input shaft connection mode has the basic type (single input shaft and double input shaft), with the motor flange two.

8. The position direction of the output and input shafts has the input shafts down and up; Output axis up and down; Input axis up and down.

9, can be used 2 or 3 sets of reducer into a multi-stage reducer, in order to obtain a great transmission ratio.

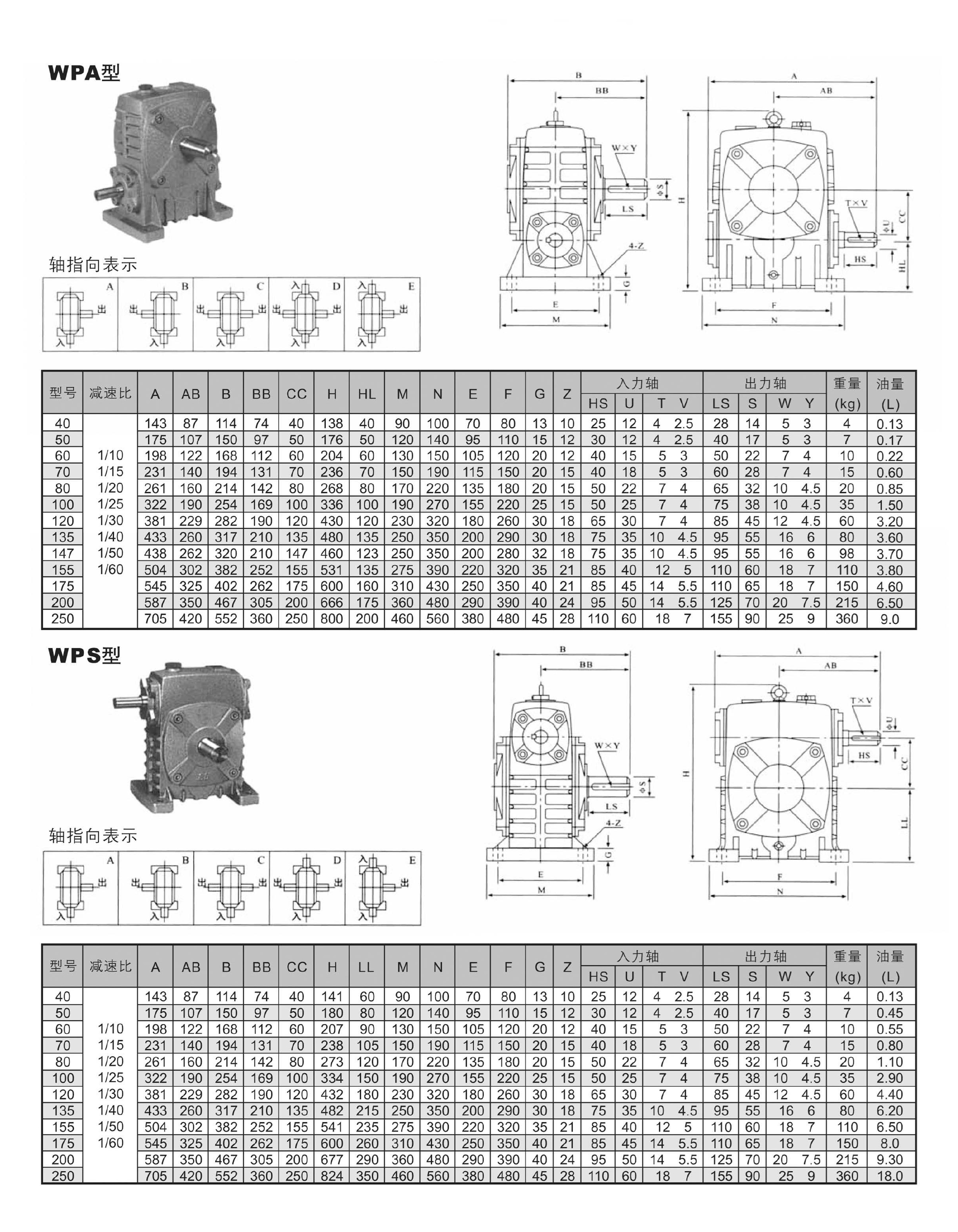

Main specification:
